AWS EBS 设置生命周期策略并跨账户共享

由于需求，需要在账户上自动创建 EBS 快照并分享给跨账户用户共享管理，EBS 快照的 Data Lifecycle Manager 可以制定相关策略。

通过控制台创建

基于计划的策略使用“EBS 快照策略”和基于事件的策略使用“跨账户复制事件策略”均可

跨账户复制事件策略

选择策略类型

进入EC2，左侧菜单栏中 Elastic Block Store 子项中找到“生命周期管理器”（DLM）这一项，创建生命周期策略。

创建生命周期策略

输入策略描述，如"Daily snapshot policy with cross-account sharing"，然后添加其它 AWS 账户 ID，此处可以在右上角处可以复制下来。“复制拥有此快照描述的快照”即用正则表达式筛选，如 .* 代表使用此账户复制由指定的 AWS 账户共享的所有快照。

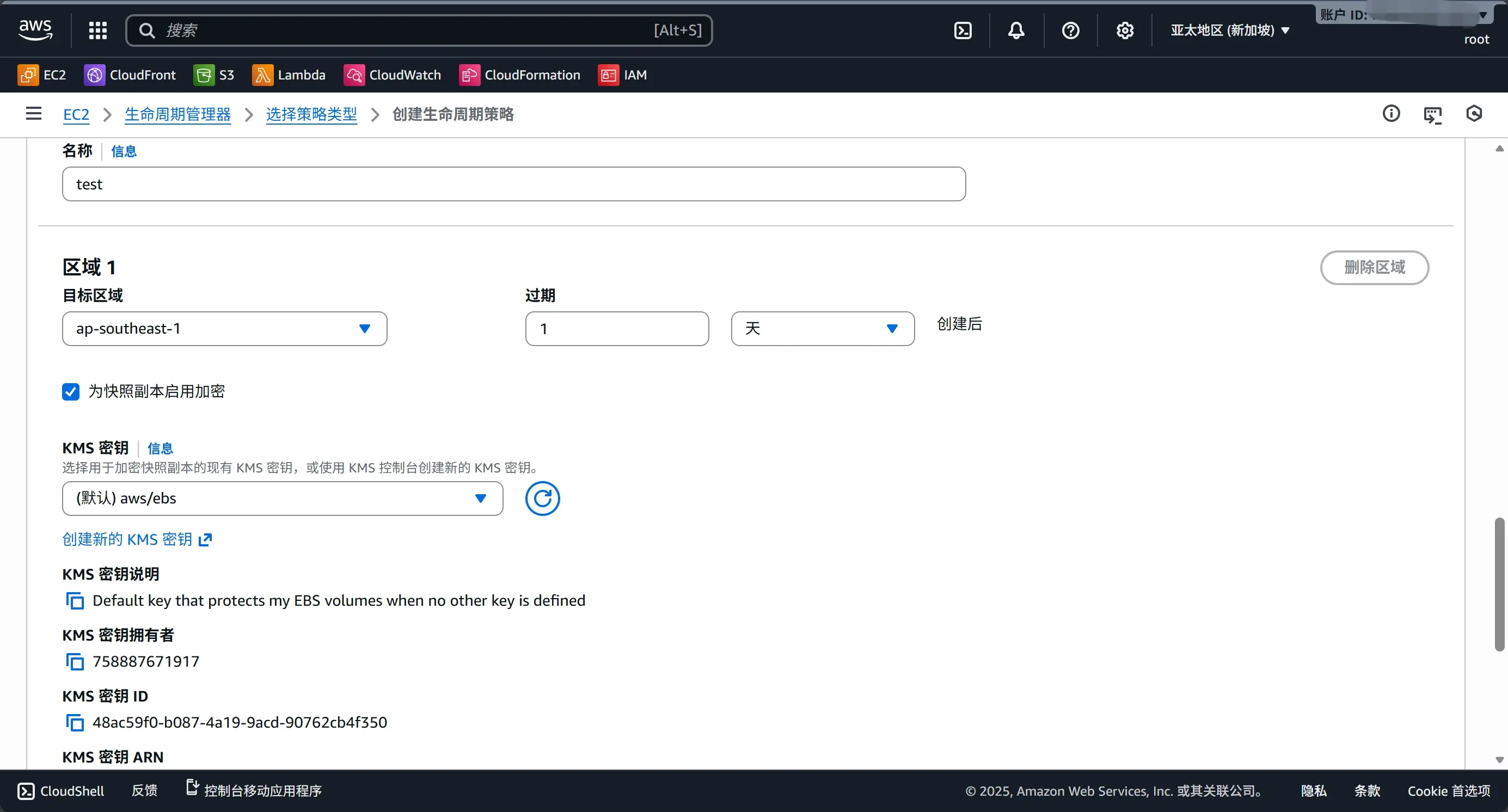

键入策略名称。如果同区域，则目标账户区域和源账户区域保持一致，过期时间看自身情况，其余 KMS 密钥这些，如无高级设置，默认即可。下方“策略状态”如需立即生效，则选中“已启用”，未启用则不会在策略创建好后生成快照。

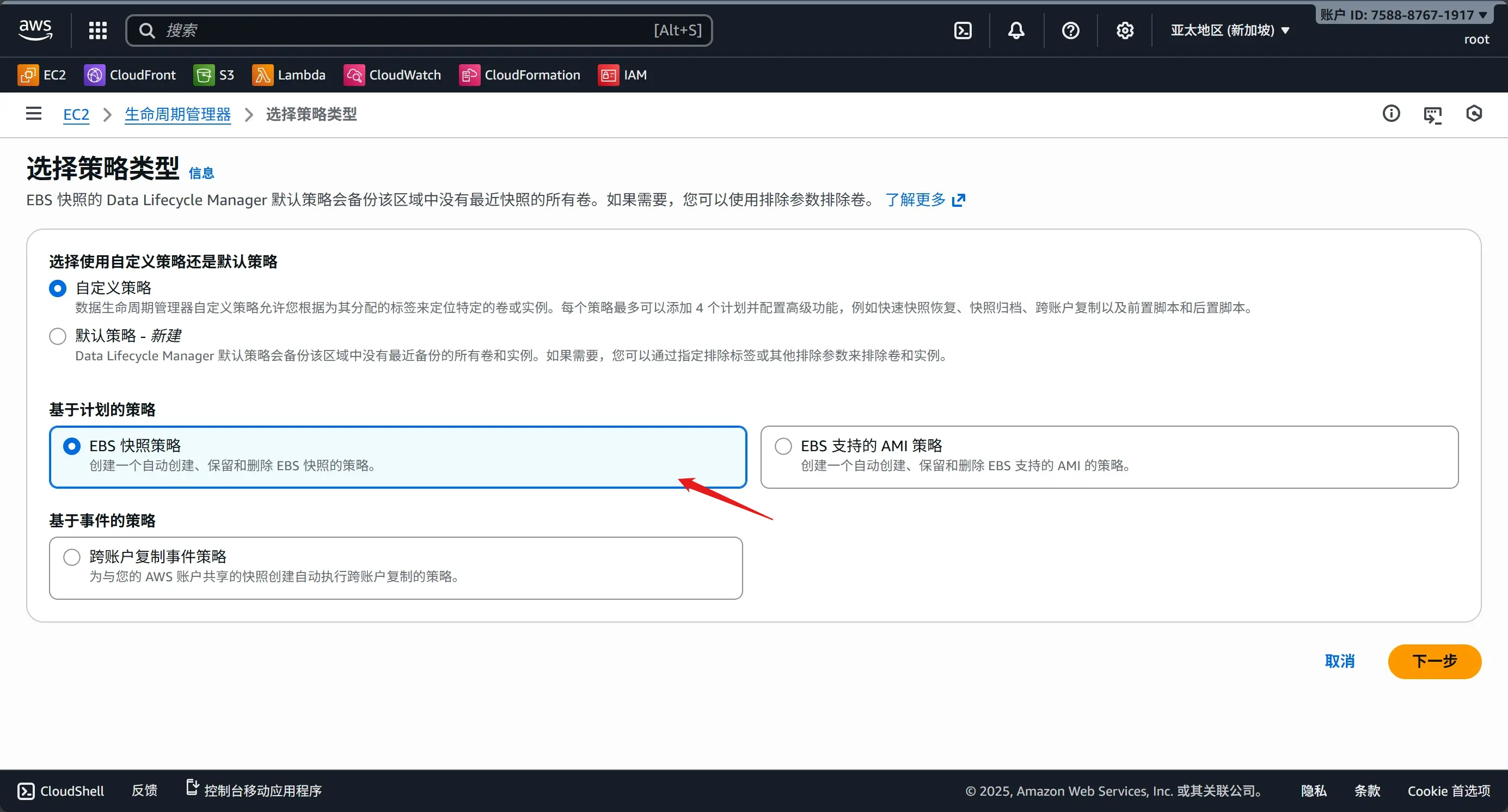

EBS 快照策略

选择策略类型

创建生命周期策略

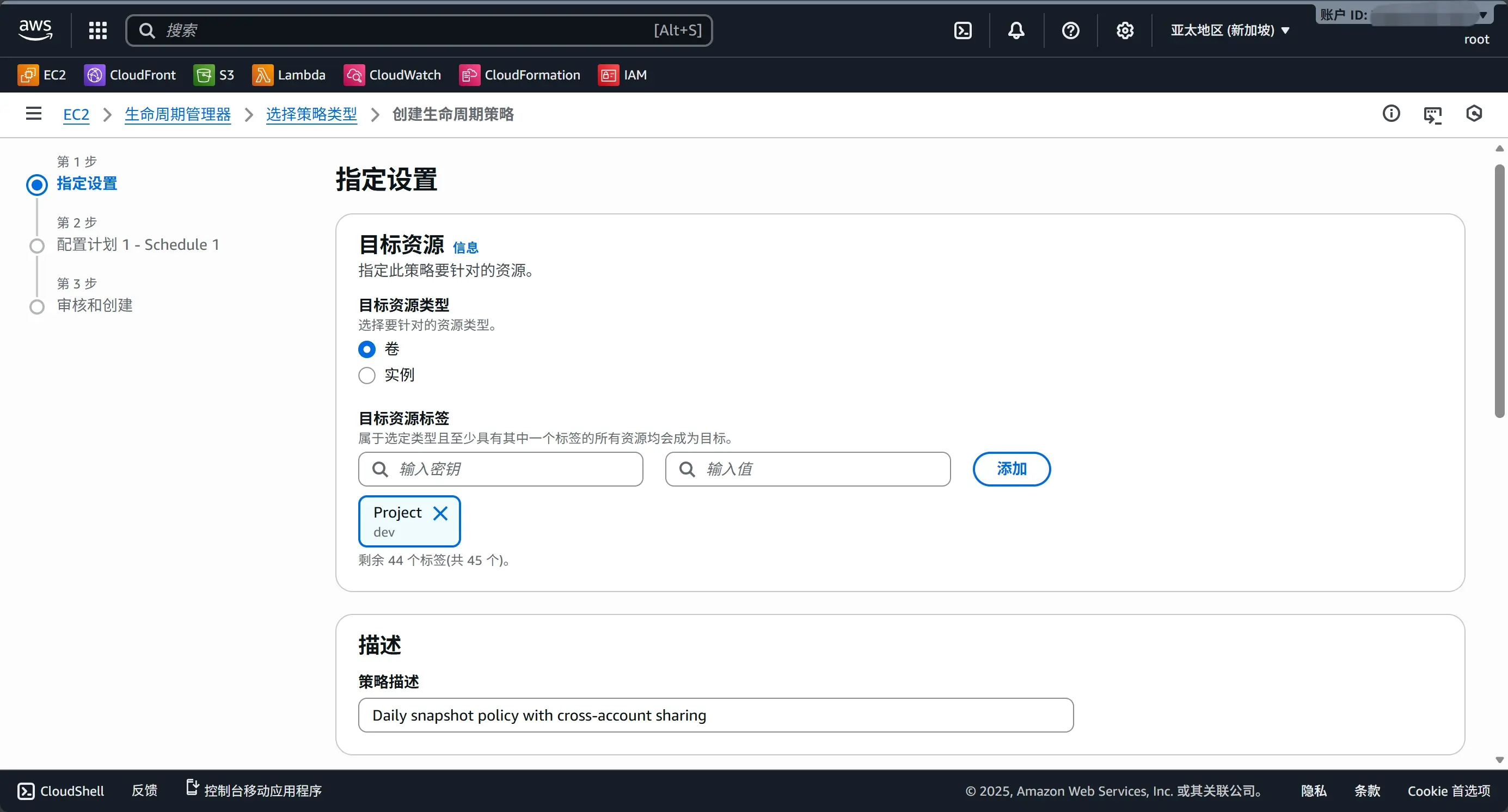

目标资源类型选择卷或是实例，若是实例的话则会将附加上的所有卷都进行创建快照，指定目标资源标签，资源必须附上相应的标签才行。如下选项根据自身情况所定

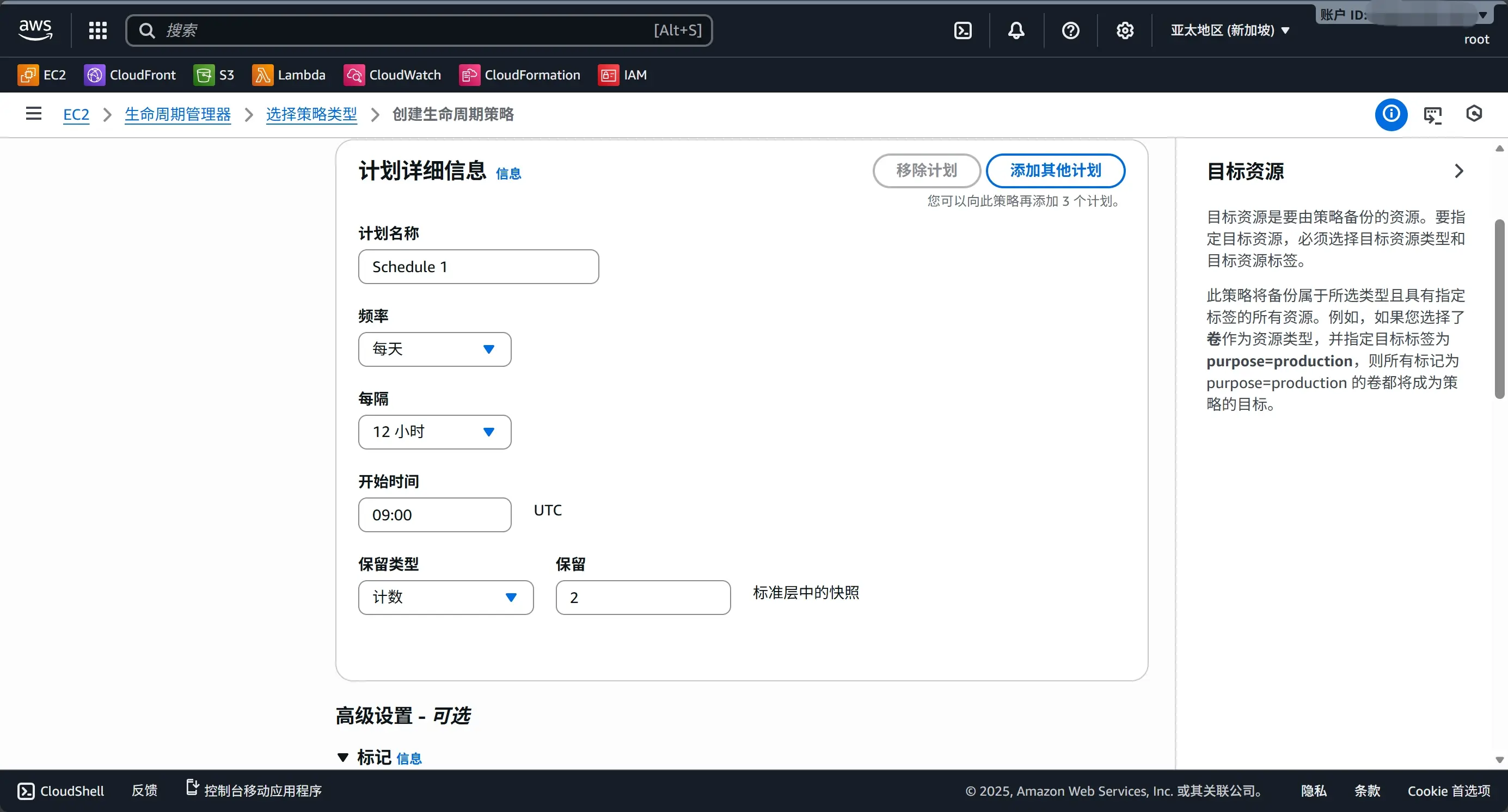

配置计划

此处设置详细计划时可以在下拉菜单中找到用 cron 表达式，设置保留数量

在高级选项中找到“跨账户共享”，即可共享给其它账户

通过CloudFormation堆栈创建

AWSTemplateFormatVersion: '2010-09-09'
Description: 'Setup DLM to create EBS snapshots and share them with another AWS Account.'

Parameters:
  TargetAccountId:
    Type: String
    Description: 'The 12-digit AWS Account ID to share snapshots with.'
    AllowedPattern: '^\d{12}$'

  VolumeTagKey:
    Type: String
    Default: 'BackupPlan'
    Description: 'The tag key on EBS volumes to target.'

  VolumeTagValue:
    Type: String
    Default: 'Gold'
    Description: 'The tag value on EBS volumes to target.'

  SnapshotRetentionCount:
    Type: Number
    Default: 7
    Description: 'Number of snapshots to retain.'

Resources:
  # IAM Role for DLM
  # DLM needs permission to manage snapshots and modify their attributes (for sharing)
  DLMLifecycleRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal:
              Service: dlm.amazonaws.com
            Action: sts:AssumeRole
      Policies:
        - PolicyName: DLMSnapshotManagement
          PolicyDocument:
            Version: '2012-10-17'
            Statement:
              - Effect: Allow
                Action:
                  - ec2:CreateSnapshot
                  - ec2:CreateSnapshots
                  - ec2:DeleteSnapshot
                  - ec2:DescribeInstances
                  - ec2:DescribeVolumes
                  - ec2:DescribeSnapshots
                  # Permissions required to add tags to created snapshots
                  - ec2:CreateTags
                Resource: "*"
              - Effect: Allow
                Action:
                  # Permission specifically required to SHARE snapshots
                  - ec2:ModifySnapshotAttribute
                  - ec2:DescribeSnapshotAttribute
                Resource: "*"

  # DLM Lifecycle Policy
  DLMSharePolicy:
    Type: AWS::DLM::LifecyclePolicy
    Properties:
      Description: 'Daily snapshot policy with cross-account sharing'
      State: ENABLED
      ExecutionRoleArn: !GetAtt DLMLifecycleRole.Arn
      PolicyDetails:
        PolicyType: EBS_SNAPSHOT_MANAGEMENT
        # Target EBS volumes with specific tags
        TargetTags:
          - Key: !Ref VolumeTagKey
            Value: !Ref VolumeTagValue
        Schedules:
          - Name: 'DailySnapshotsAndShare'
            TagsToAdd:
              - Key: 'CreatedBy'
                Value: 'DLM-CloudFormation'
            # Create a snapshot every 24 hours
            CreateRule:
              Interval: 24
              IntervalUnit: HOURS
              Times:
                - '01:00' # UTC time
            # Retain snapshots for X counts
            RetainRule:
              Count: !Ref SnapshotRetentionCount

            # Configuration for sharing with another account
            ShareRules:
              - TargetAccounts:
                  - !Ref TargetAccountId
                # Unshare (stop sharing) after this interval.
                # Usually set >= RetainRule to ensure it is shared for its whole life.
                UnshareInterval: !Ref SnapshotRetentionCount
                UnshareIntervalUnit: 'DAYS'

Outputs:
  DLMPolicyId:
    Description: 'The ID of the created DLM Policy'
    Value: !Ref DLMSharePolicy

参考资料

Automate backups with Amazon Data Lifecycle Manager - Amazon EBS

Automate cross-account snapshot copies with Data Lifecycle Manager - Amazon EBS
